High energy levels and deeper penetration to cover a wider range of musculoskeletal pathologies.

Discover the power of the DolorClast® Focused Shock Waves, designed to deliver high-energy shockwave therapy with deeper penetration to provide effective treatment for a wide range of musculoskeletal and bone pathologies. This innovative technology offers fast results, starting from the first session, and helps promote natural healing.

The DolorClast® Focused Shock Waves is designed to enhance patient care and improve patient experience by delivering pain relief and promoting rehabilitation for a variety of conditions.

Focus On Treatment

• High-energy output for better treatment outcomes.
• Targets the root cause of pain and neurogenic inflammation.
• Promotes natural healing with minimal discomfort.
• Non-invasive alternative to surgery and injection.
• Best suited for deep musculoskeletal and bone pathologies, calcifications, deep trigger points, or erectile dysfunction.
• Fast effects from the first session and lasting benefits.
• Alternative to radial shock waves for patients with low pain thresholds.

Focus On Indications

• Pain syndromes (myofascial pain, greater trochanteric pain, trigger points, lumbar and cervical pain, pelvic pain).
• Tendinopathies and fasciopathies.
• Chronic soft tissue wounds.

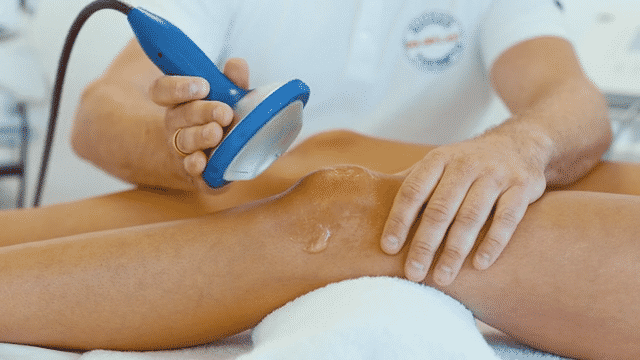

• Knee osteoarthritis.
• Bone lesions (nonunion, delayed union, stress fractures, tibial stress syndromes, shoulder adhesive capsulitis).
• Spasticity.
• Erectile dysfunction.

Which Shock Waves Are Most Effective?

• The formula is simple: the more energy delivered into the tissue, the better the therapeutic outcome
• The compression phase in focused ESWT is usually shorter than in radial ESWT.
• The maximum pressure P+ in focused ESWT is usually higher than in radial ESWT.
• Both focused and radial ESWT can reach an ED+ of 0.4 mJ/mm2, which has been clinically proven to be sufficient for almost all ESWT indications on the musculoskeletal system and the skin.

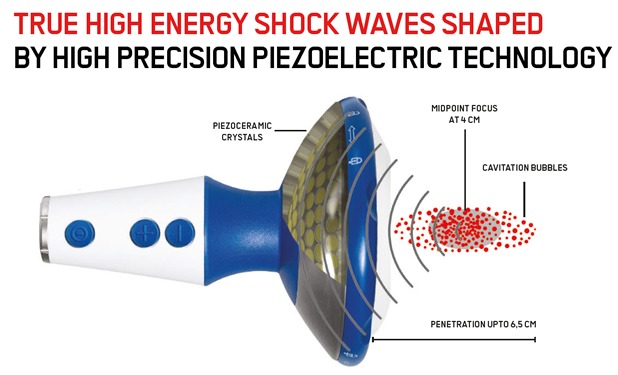

The Focus Handpiece

Stay focused on your patient:
On/off and intensity buttons are accessible directly on the handpiece allowing full control during the treatment.

Provide comfortable treatments even to highly sensitive patients:
DolorClast® piezoelectric technology provides the most comfortable treatment experience even for the sensitive patients.

Prioritize treatment efficiency:
Deliver the highest energy at the optimal depth based on the pathology. Only 3 gel pads required.

Save Time and Focus On Your Patients

• Easy to set-up.

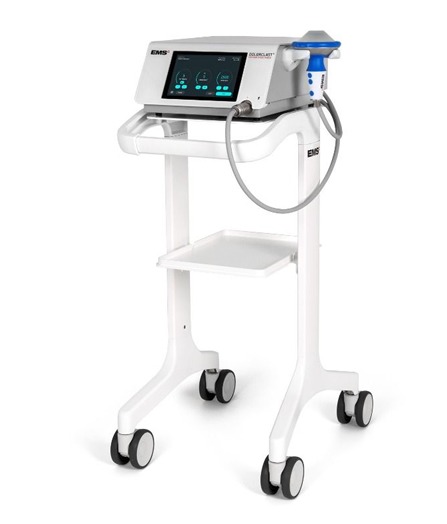

• Easy to move around with optional cart featuring multidirectional wheels.
• Transportable to treat anywhere at any time
• Maintenance-free.
• Long handpiece lifespan of over 5 million impulses.

Technical Features:

Manufacturer:
EMS ELECTRO MEDICAL SYSTEMS SA, CH-1260 Nyon, Switzerland

Model:

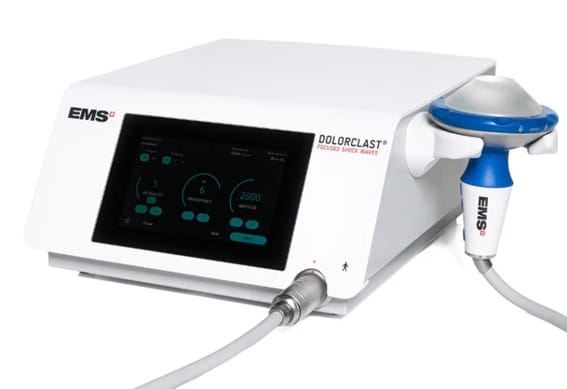

DolorClast® Focused Shock Waves

Regulation (EU) 2017/745 Classification:
Console, Handpiece: Class IIa
Contact gel, Gel pads, Cart: Class I

Classification EN 60601-1:
Console, Handpiece, Gel pads: Class I
Applied part type B
IP Rating: Console IP21 / Handpiece & Gel pads IP20
Mode: Continuous operation

Power Supply:
100–127 / 220–240 VAC, 50–60 Hz, 150 VA

Ranges:
Intensity: 0.1–20
Energy: 0.008–0.403 mJ/mm²
Number of impulses: 0–4000
Frequency: 1–8 Hz
Pressure: 6.4–80 MPa

Fuses:
F4AL250V – Interrupting rating: 63 A

Weight (approx.):
Console: 15 kg
Handpiece: 1.4 kg
Gel pads kit: 0.8 kg
Cart: 18 kg

Dimensions (W × H × D):
Console: 180 × 340 × 450 mm
Handpiece: 156 × 116 × 116 mm
Cart: 913 × 460 × 541 mm

Operating Conditions:
+10°C to +35°C
Relative humidity: 35%–65%
Max altitude: 3000 m
Atmospheric pressure: 700–1060 hPa
